The high-speed mobile bin lifter.
The Multi-Tip from Simpro is everything a bin lifter should be - safe, reliable, cost-effective and easy to use. With a huge 150kg capacity and 15-second tipping cycle, it is ideal for operations where a light-duty mobile bin-tipping machine is required.
The Multi-Tip features a single-mast lifting design which gives the operator an unobstructed view of operations to ensure safety. No cage guard is required, since the two-hand control system prevents the operator from accessing moving parts while using the machine. The open design is also very easy to clean and maintain.
The standard Multi-Tip dumps bins at a height of 1.6 metres and is fitted with a cradle which lifts all common EN840 wheelie bins, without clamping or modification. However Simpro's modular cradle architecture allows a Multi-Tip to be adapted to suit almost any container weighing up to 150kg - including US-style trash carts, BRUTE® bins, 205-litre drums and even custom bins. Additionally, other tipping heights between 1.2m and 1.8m can be specified for custom manufacture, including a fully height-adjustable version if required.
Like all Simpro products, the Multi-Tip is extremely robust, corrosion resistant, and requires no regular maintenance.
[The Multi-Tip] is the best thing I've made this school purchase, since I've been here... as far as compliance and relieving me of hard work, this is the best. Absolutely the best!Graham Hawkes - Caretaker - One Tree Hill College
Options and Accessories

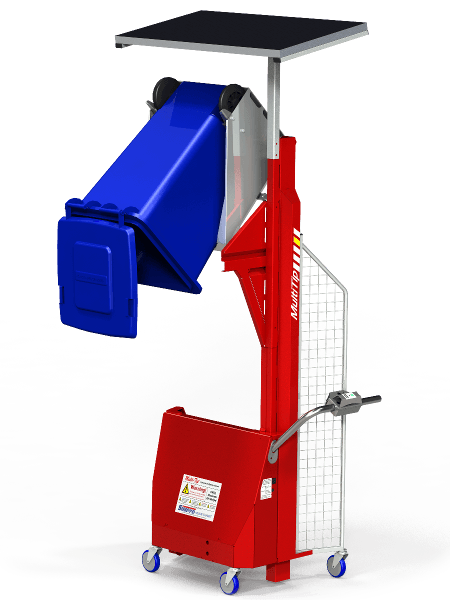

- Solar panel allowing more than 30 tips per day with no power supply.
- Uprated 55Ah battery.
- Custom cradles to suit almost any size and shape of bin.
- Large ⌀200 wheels with pneumatic tyres for mobility on rough surfaces.
- Transparent PET-G splash shield, to protect the operator when tipping harmful substances.
- Nonstandard models are available with reduced 1200mm tipping height, or adjustable 1200-1800mm tipping height
- Custom power options including 1-phase mains, 3-phase mains, or compressed-air.
We would empty 10 to 15 bins a day... normally we would need to plug it in only if we have two or three cloudy or rainy days.Peter Pearson - Pak'n Save Albany - Auckland
Specifications and Technical Data
|Tipping height||1600mm (options: 1200mm model, 1200-1800mm adjustable model)|
|Height||2380mm cradle lowered / 2660mm cradle raised|
|Capacity (max bin weight)||150kg|
|Bin compatibility (EN840 cradle)||60L, 80L, 120L, 140L, 240L EN840 wheelie bins (options: custom cradle)|
|Bin throw||~180mm with 240L wheelie bin / ~105mm with 120L wheelie bin|
|Electrical specifications||Onboard digital float charger (input: 90-264VAC 47-63hz, max draw 3 Amps), with 12V 21Ah deep-cycle sealed gel battery, 0.8kW DC electric motor, and 12VDC control circuit (options: uprated 55Ah battery, solar panel, 1-phase mains operation, 3-phase mains operation)|
|User interface||Raise/Lower buttons, Safety button, key switch, battery indicator, master lockout switch|
|Cradle travel speed||0.4m/s lifting / 0.28m/s lowering|
|Tipping cycle duration||~18s|
|Noise level at operator’s ear||⪅ 60dB(A)|
|Materials||Powdercoated mild steel frame, powdercoated 25x25x2.5 wire mesh guarding, zinc-plated mild steel cradle|
|Mounting||4x ⌀125mm Blue Resilex castors, two braked (options: pneumatic tyres)|
|Applicable Standards and Certifications||AS/NZS4024, ISO 13849-1, IEC 62061, Conformité Européene (CE), EN 349 1993, EN 574 1996+A1:200, EN 953 1997, EN ISO 4413 2010, EN ISO 12100 2010, EN ISO13849-1 2006, EN ISO 13857 2008, EN 60204 2006+A1 2009, EN61000-6-2 2005, EN61000-6-4 2007, Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2004/108/EC|
Good design, reliable, reasonable price, acceptable delivery time and good logistic service.Jozsef Hekli - Purchasing Manager - Celitron Medical Technologies - Vác, Hungary
Resources and Downloads
Full full product support, user guides and spare parts please visit the Simpro Support Centre.
