Eurostacker

Compact semi-electric bin stacker.

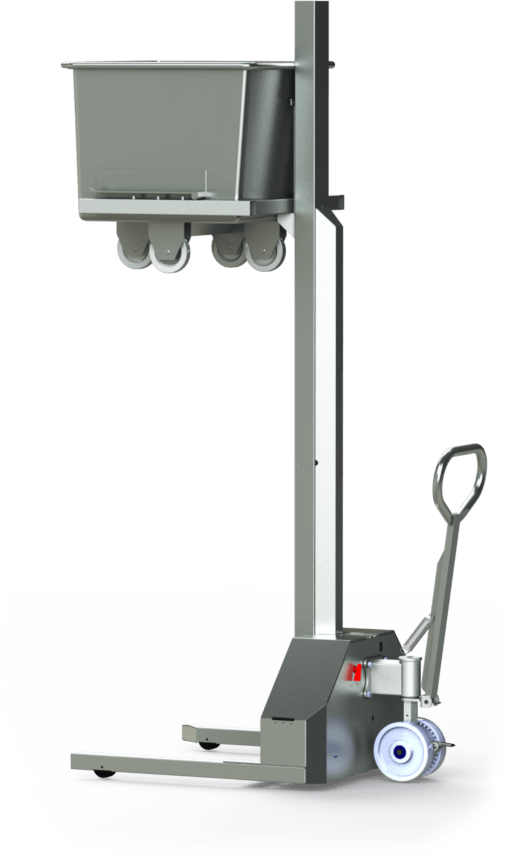

Eurostacker is a compact semi-electric bin stacker from Simpro, with modular lifting arms designed to suit common food-grade bins and containers

Overview

Eurostacker is a compact semi-electric bin stacker from Simpro, with modular lifting arms designed to suit specialist food-grade bins and containers. It is ideal for logistics and warehousing applications where ingredient bins need to be moved, stacked, lifted into racking or loaded into trucks.

With a reliable electro-hydraulic system, the Eurostacker can lift bins weighing up to 300kg to a maximum height of 2000mm. The unique single-mast design keeps weight to a minimum while improving operator visibility, and the triangular wheel layout ensures full control on any surface. The stacker is less than a metre wide, and can turn in its own length – ideal for constricted spaces.

The Eurostacker can be produced from either 304-grade stainless steel, for hygiene-critical environments, or mild steel with a powdercoat finish. All models have waterproof controls, a 21A/h sealed gel battery and an integrated digital float charger.

Like all Simpro products, the Eurostacker is designed to withstand intensive daily use with little or no maintenance.

The Eurostacker is designed to be used with other Simpro handling equipment in the Eurobin Ecosystem and FoodCap® Ecosystem.

Features

Features of the Eurostacker from Simpro

Options and Accessories

The Simpro Eurostacker with lifting arms to suit FoodCap capsules.

Simpro’s experienced engineering team can design and implement custom features if required; please contact us for support.

The Eurostacker is available with lifting arms to suit DIN9797 Eurobins or FoodCap capsules, as shown here.

Specifications and Technical Data

Microstacker isometric view and dimensions

Eurostacker Specifications
Model ES2000 ES2000FC
Maximum load capacity ("Q") 300kg
Bin compatibility DIN9797 Eurobins (options: bread crates, custom bins) FoodCap capsules
No. wheels, body 2
Wheel dimensions, body 200mm
No. wheels, outriggers 2
Wheel dimensions, outriggers 80mm 200mm
Overall height ("h1") 2575mm 2290mm
Overall height, mast raised with bin ("h2") 2930mm 2810mm
Maximum lift height ("h3") 2000mm
Overall length ("l1") 1250mm 1100mm
Length to face of forks ("l2") 650mm
Overall width ("b1") 820mm 628mm
Fork length ("l") 650mm 500mm
Fork width ("e") 10mm 15mm
Fork depth ("s") 65mm 50mm
Width overall forks ("b5") 760mm 490mm
Turning radius ("Wa") 1400m 1200m
Travel speed Operator dependent
Lift speed, laden / unladen 0.08m/s / 0.1m/s
Lower speed, laden / unladen 0.15m/s / 0.12m/s
Sound level at operator’s ear ≤ 40dB
Materials 304-grade stainless steel with polished finish (options: Mild steel with powdercoated finish)
Service brake Mechanical
Battery voltage / nominal capacity 12v / 21A/h
Battery weight 6.2kg
Battery dimensions (L x W x H) 180mm x 75mm x 165mm
Service weight ~180kg ~150kg

Resources and Downloads

Full full product support, user guides and spare parts please visit the Simpro Support Centre.
